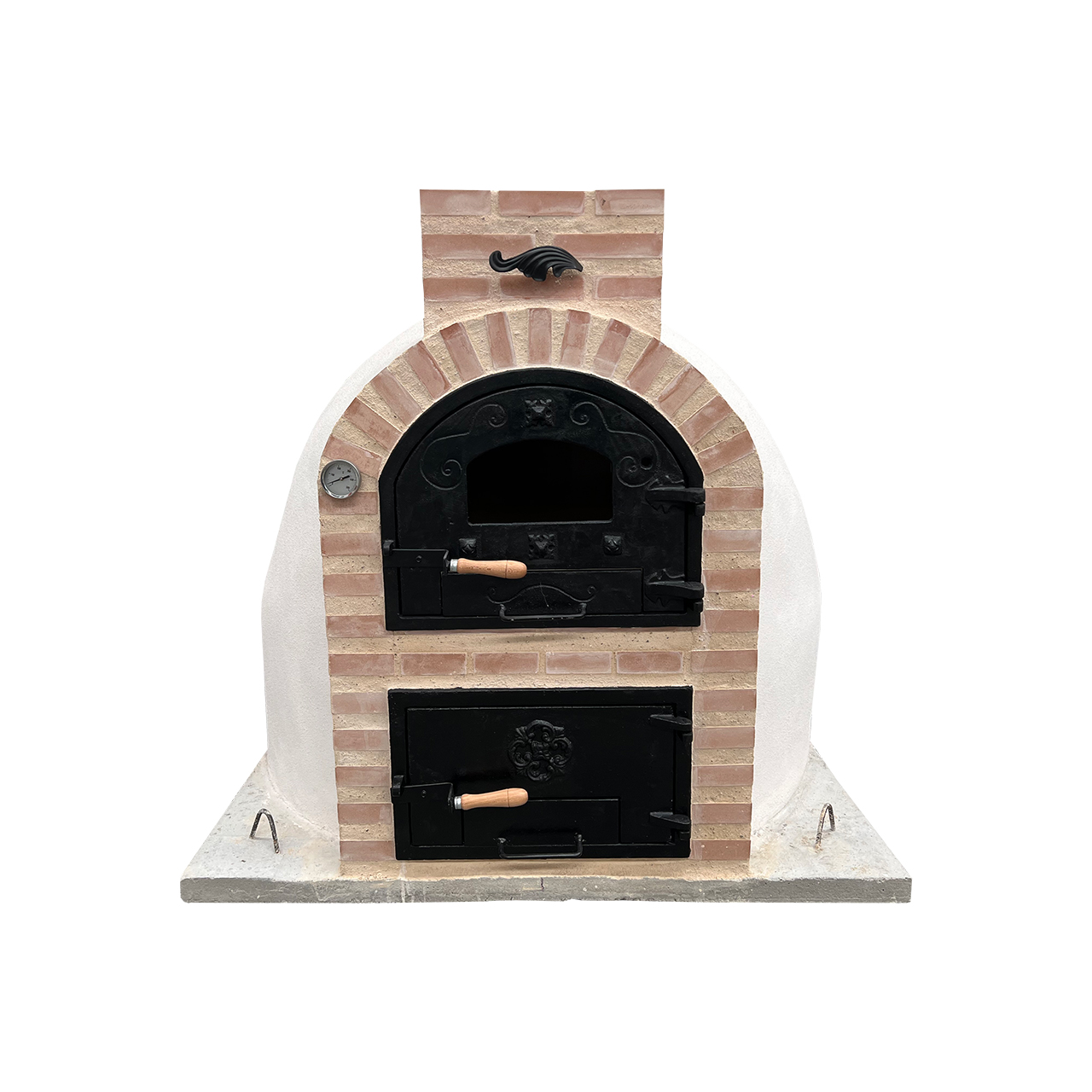

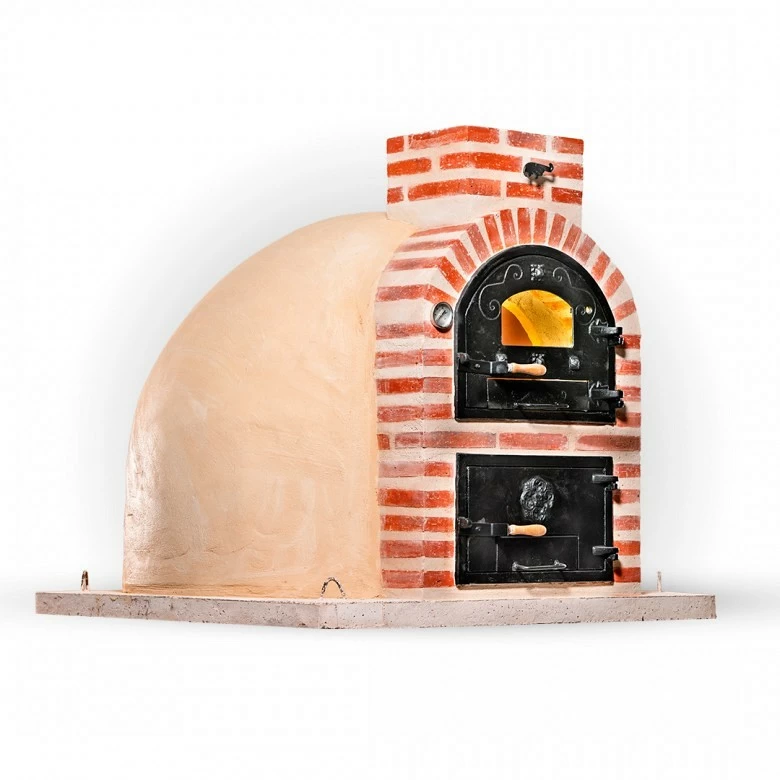

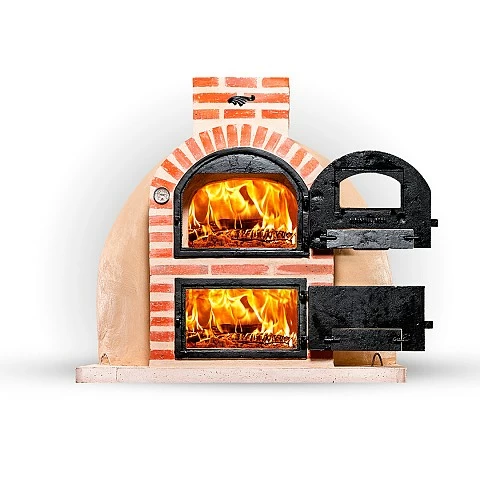

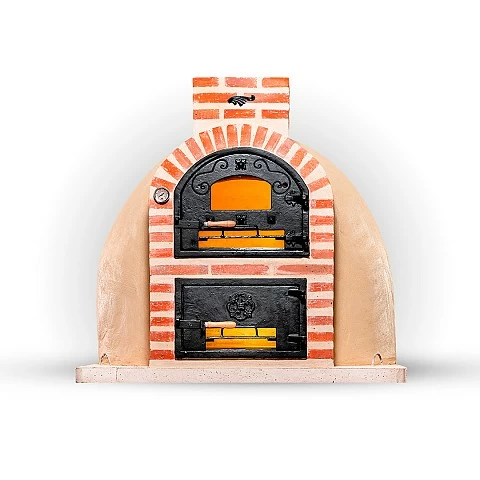

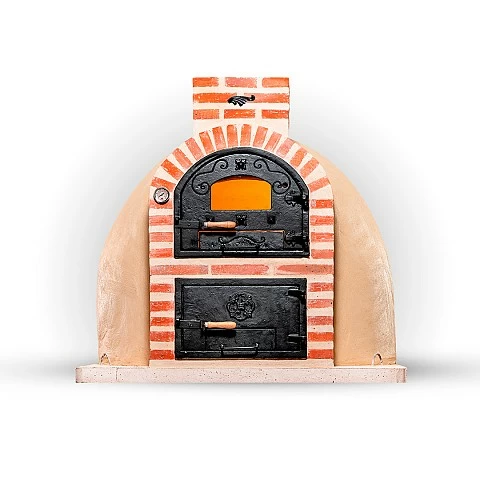

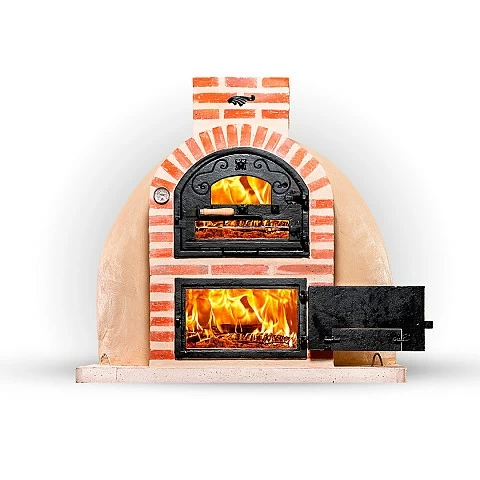

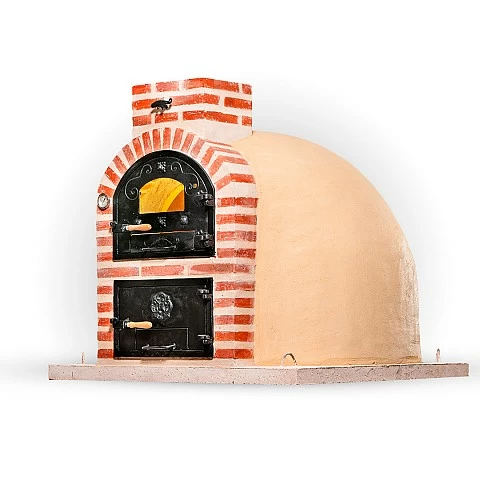

Wood-fired oven with burner, classic finish.

Wood-fired oven with burner, classic finish.

Ref. HOR HOR CLASWood-fired oven with burner with classic finish. This oven is composed of the clay oven made with a PATENTED system that eliminates joints and heat leaks, cast iron doors and draught and top quality insulating materials to achieve excellent performance and minimum wood consumption for our customers.
1,800.00

Price

1.800,00 €

Previous price

1.910,00 €
Consult

Share:

Description

Why buy from Alfarería Rosa?

At Alfarería Rosa we want you to have an unbeatable oven and feel proud of us and our work, that is why we use the best complements and materials on the market to insulate the oven so that the heat lasts as long as possible with the lowest possible consumption of firewood, mainly focusing on the following aspects:
Clay oven with patented system.
Cast iron door and flue.
Unbeatable thermal insulation.
Resistant to any weather.
Homogeneous heat redistribution.
Unique flavour transmission.
Guaranteed product.

"MORE THAN 20.000 SATISFIED CUSTOMERS".



CHARACTERISTICS
THE CLAY OVEN.

The clay oven is handmade by the hands of our expert potters following a strict quality control in each one of them by our CEO Roberto Puente who with his 20 years of experience in the sector has provided our clay ovens and wood-fired ovens with a PATENTED manufacturing system with number 201731005, which eliminates joints and heat leaks as well as avoiding expansion in joints and finishing, adding between 20-25% more calorific power and making our clay ovens and wood-fired ovens a world reference. The clay kiln or wood-fired kiln has a reinforcement in the form of a curb both at the base and in the dome and an internal reinforcement between the base and the dome; the drying process is natural, without being exposed to air and currents that cause cracks and dilatations, a normal and common process in other potteries. The firing is carried out in 8, 10 and 18 cubic metre kilns of the latest generation where more than 100 kilns can be fired per week at a temperature of 1180ºC for 36 hours.

We make sizes from 70cm to 200cm to adapt to the needs of our private and professional customers. CONSULT SIZES





THE ACCESSORIES USED

The oven door

There are different door models to choose from depending on the options available. ALL DOORS ARE MADE OF CAST IRON. With this material you will always have a guarantee that it will not suffer deformations due to high temperatures. ALWAYS CAST IRON. At the bottom of this paragraph, you will find links to our website to see each door model in more detail.

Extra Cast Iron Door
Cast Iron Extra Glass Door
Superior Cast Door
Superior Cast Door with Glass

The burner door

The door of the cooker is rectangular, ALL CAST IRON. With this material you will always have a guarantee that it will not be deformed by high temperatures. ALWAYS CAST IRON. At the bottom of this paragraph, you will find links to our website to see each door model in more detail.

Cast Iron Oven Door

The draught

The draught/chimney used for the extraction of smoke in our ovens is fitted with a cast iron, non-deformable smoke outlet regulator. EXCLUSIVE PRODUCT RESGISTERED BY ALFARERIA ROSA. You can see this product in more detail by clicking on the following link, click here.



The thermometer

The thermometer that we include as a GIFT is a 500 ºC copper thermometer with a double copper sheath protector measuring 200 mm or 300 mm if we place it in the door and in the case of placing it in the building site we would include the thermometer with 400 or 500 mm sheaths. Product of national manufacture, nothing of import. You can see this product in more detail by clicking on the following link, click here.

INSULATING MATERIALS USED IN THE STOVE-MOUNTED FURNACE.

We begin the manufacture of our kiln mounted with oven by placing it on a base made of reinforced concrete with mesh and fibre made on vibrating tables. All the bases have four anchorages or threaded bolts.

The sizes of the bases depend on the size of the kiln and can be 110x110cm / 120x120cm / 130x130cm / 135x135cm / 140x140cm and larger for kilns made to order.

The insulation used in Alfarería Rosa for the finishing of this traditional wood-fired oven with burner is composed of top quality refractory materials to achieve excellent performance and minimum wood consumption for our customers.

The materials we use to insulate our ovens are:

Triple layer of 100% authentic refractory clay from Pereruela. CAOLIN.
Double layer of biosoluble fibre 1200ºC 128 kg/m3.
Double layer of high quality refractory mortar. PUMA 1200ºC.
Arlite
Flexible waterproofed and water-repellent mortar for the final finish.
Refractory bricks for the mouth.
Double cooker walls filled with refractory material and made with straight refractory bricks.
We are pioneers in the technical progress of all our products, with our own patents, utility models and industrial designs to achieve the best product at an optimum price for our customers.

The Alfareria Rosa kiln with traditional finish has an approximate weight of 850 kg which increases as the size of the kiln increases.





INFORMATION WE PROVIDE WITH YOUR KILN ASSEMBLED
We put at your disposal:

INVOICE IN YOUR NAME FOR WARRANTY PURPOSES
CERTIFICATE IN YOUR NAME WITH PATENT NUMBER OF THE KILN
PERSONALISED ADVICE
2 RECIPES
THERMOMETER INSTALLATION MANUAL
CASSEROLE CURING MANUAL
MANUAL OF FIRST IGNITIONS.
ALFARERIA ROSA GUARANTEE

ADVICE FOR A GOOD USE AND OPERATION.
The assembled wood-fired ovens leave our factory waterproofed so that they can be used both indoors and outdoors. Alfarería Rosa advises that for a better use and operation of the same one if it is placed outdoors it is good that before the winter arrives we waterproof it every year to keep it intact all the seasons and to be able to enjoy our oven all the life. CONSULT YOUR PREMIUM OVEN.



SHIPPING AND DELIVERY METHODS
The prices that you can see of the wood oven have FREE TRANSPORT to your home by transport agency (See shipping conditions), the transport agency has a lifting ramp that lowers the assembled oven to the ground that goes on a pallet and with a manual pallet truck moves it to where it can reach your home. It does not include placement or depalletisation.
By Alfarería Rosa's own means, which provides all our customers with qualified personnel to carry out assemblies and installations at any point and in any situation, with a crane lorry and machinery with pioneering technical means at your disposal. CONSULT THIS OPTION.

IMPORTANT INFORMATION ABOUT US
Alfarería Rosa is a manufacturer of clay ovens and wood-fired ovens in Pereruela de Sayago, province of Zamora, leaders in the sector in R+D+I with patents, several utility models and a great variety of industrial designs that guarantee only and exclusively to our clients and to those who trust in our company an unequalled quality and performance.

For several generations and currently managed by a young, large and expert team that will give us solutions and alternatives so that you have the clay oven and wood oven of your dreams and you can enjoy it and get the best performance possible.

We have facilities of more than 14,000 square metres in different points of sale and manufacture in Pereruela de Sayago where you can find, see and purchase everything you need to assemble your clay oven. On the other hand and after the process of national and international expansion that we are carrying out, we have expanded the manufacturing facilities by building new facilities in the industrial area of Los LLanos in Zamora (7 minutes from Pereruela) where we have 2,800 square meters of warehouses and 4,000 square meters of land with leading facilities at national level in each of the production processes related to the manufacture of all our products.

Our wood-fired ovens in Pereruela are made of refractory clay from our locality with a PATENTED system handmade by our professional team to give our customers the best quality on the market...

Alfarería Rosa has a metal workshop with a 10 tonne overhead crane, TIC welding machines, electrode, auto-pulsed, latest generation plasma, profile bending machine, band saw, bending machine, foot drill and two CNC machines such as the Durma bending machine and shear to ensure that both the private customer and the distributor have the best metal parts to provide the clay oven and wood-fired oven with the necessary accessories for perfect operation.



Nº Artisan Register:

49-I-79 ROBERTO PUENTE REDONDO

49-I-83 ROSA Mª REDONDO GAMON


PAYMENTS AND PURCHASES THROUGH OUR WEB PAGE.
Choice of payment by bank transfer DOES NOT CARRY ADDITIONAL COSTS.
Payment by credit card payment: there is an additional cost of 3 % of the price.
Payment by Paypal payment option: there is an additional cost of 7% of the price.


COMMUNICATION
If you have any questions we are at your disposal:

Tel. 980 032 337 - 695 388 368 - 692 242 285

Email: info@alfareriarosa.com

It may interest you
Oven with square-shaped burner and finished in brick Oven with square-shaped burner and finished in brick…
Wood-fired oven with burner finished in refractory brick of different sizes with…
1.915,00 €
Buy

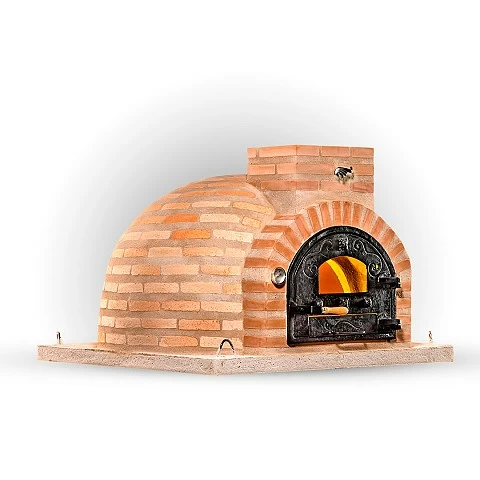

Traditional Assembled Oven Finished with Traditional BrickTraditional Assembled Oven Finished with Traditional…
